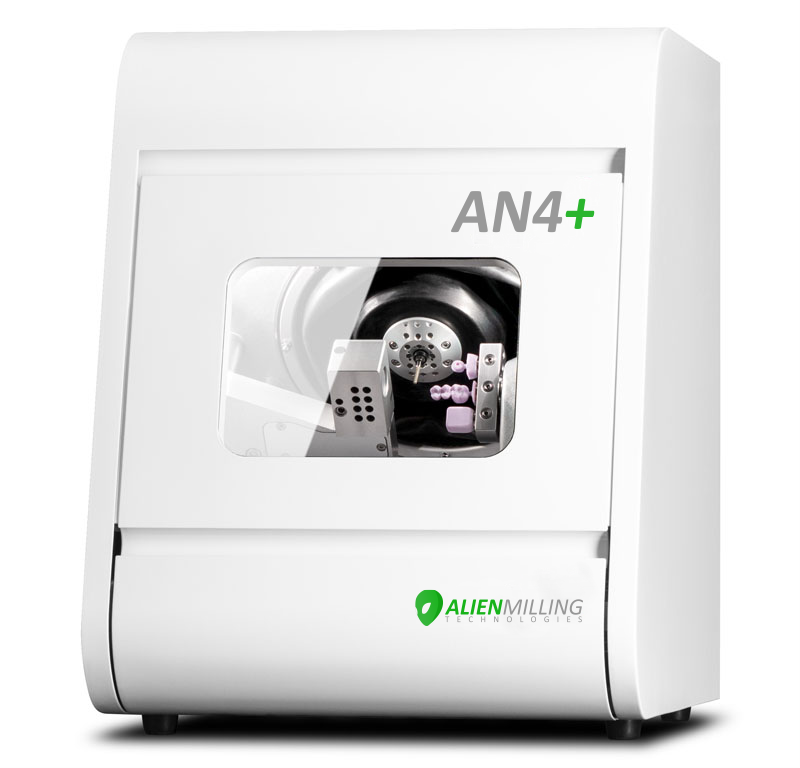

Alien N4+ - Dental Milling Machine
Ask a Question

VHF

Alien N4+ - Dental Milling Machine

€24.228,95
Number of Machines

Wet grinding reloaded. N4+

The N4+ is a wet processing machine for grinding glass ceramic, composite and zirconium blocks as well as titanium abutments. This machine combines the high precision and fast drives common to all vhf machines with a liquid cooling system in an extremely compact housing.

Ideal for the in-office lab


The N4+ is ideal for in-office laboratories that want to produce the work without delay and avoid the higher costs associated with external production. With the combination of the wet grinding machine N4+ and a dry milling machine, users can work simultaneously and minimize the cleaning effort that most hybrid machines would require (excluding of course vhf’s R5 with its revolutionary DirectCleanTechnology).


For a variety of indications


For crowns and bridges, inlays, onlays, abutments, telescopic crowns, veneers, table tops, etc.


Tool change in no time


The tool magazine can be inserted quickly and effortlessly with a single movement. The automatic changer offers space for up to 8 tools.


Enjoy the freedom of choice.

No material is off limits: blocks, and abutments

  • composites
  • plastics/wax
  • glass ceramics
  • zirconia
  • titanium
  • CoCr

Maximum freedom of indication

  • crown/bridge
  • inlay/onlay
  • abutment
  • veneer



Further features


Exceptional precision

  • Restorations in ultra HD
  • Premium spindle with 4-fold hybrid ceramic ball bearings for maximum running smoothness
  • 3 microns repetition accuracy

Sophisticated design

  • Eight fluid nozzles for even tool cooling
  • Highest rotational speeds of up to 80,000 RPM with 800 watts of power
  • Heavy industrial quality

Absolute independence

  • 38 block materials from 20 manufacturers – and rising
  • 1,300+ titanium and CoCr prefabricated abutment blanks from 11 manufacturers
  • Ideal for labs and in-office labs

University validated results

  • Researchers at University of Washington confirmed exceptional precision of – 10 μm and + 26 μm with milling of titanium custom abutments

Maximum economy

  • Work on up to 3 blocks with 45 mm length at the same time
  • Automatic changer for 8 tools
  • Webcam in working chamber for remote monitoring
  • Ethernet interface for stable connection
  • Removable coolant tank
  • 24-month warranty
  • DentalCAM software with DirectMill function – included in scope of delivery and without license fees



Warranty

1 Year limited warranty on all parts, except for wear and tear.
Tools other than OEM VHF Tools will void warranty.



Bundles

Installation

No Installation
Machine will be shipped with no Training or installation.

Remote Installation
A Remote Installation Representative will walk you through the installation process via phone, and Teamviewer.

On Site Installation
A Technician will be on site, to install and train your technicians on how to operate and maintain your new milling machine.

CAM Computer

No Computer
Customer required to provide a PC which meets all minimum requirements.

  • Intel i7 or better
  • 16GB DDR4 Ram or Better
  • 256GB SSD or Better
  • Gigabit Ethernet or Better



Computer with Monitor
Alien Milling Recommended computer that exceeds all minimum requirements.

Includes 27" Monitor, Wireless Keyboard and Mouse Combo.

Suction Unit

No Suction Unit
Customer required to provide a suction unit, recommended for Zirconia manufacturing inside a dental laboratory.

Renfert Silent CompactCAM


 Advantages

  • Bi-directional communication between extraction unit and CAM unit thanks to the PLC interface.
  • Low operating noise of max. 55 dB(A).
  • 3x longer service life in comparison to conventional collector motors (1,000 operating hours guaranteed).

Details

  • No follow-up costs due to bag-free dust collection.
  • Working without interruption due to uncomplicated motor change within minutes.

Alien Zirconia Packages

1 of each  STARTER ESSENTIAL PRO
  12mm A2
16mm A2
20mm A2		 12mm A1, A2, A3, B1
16mm A1, A2, A3, B1
12mm A1, A2, A3, B1		 12mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
16mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
20mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
25mm A1, A2, B1, White
30mm A1, A2, B1, White
  12mm A2
18mm A2  		 12mm A1, A2, A3, Hollywood
18mm A1, A2, A3, Hollywood		 12mm A1, A2, A3, A3.5, B2, C2, Hollywood
18mm A1, A2, A3, A3.5, B2, C2, Hollywood
  14mm A2
20mm A2		 14mm A1, A2, A3, B1
20mm A1, A2, A3, B1  		 14mm BL1, BL2, A1, A2, A3, B1
20mm BL1, BL2, A1, A2, A3, B1
  14mm A2
20mm A2		 14mm A1, A2, A3, B1
20mm A1, A2, A3, B1		 14mm BL1, BL2, A1, A2, A3, A3.5, B1, B2, C1, C2, D2, D3, White
20mm BL1, BL2, A1, A2, A3, A3.5, B1, B2, C1, C2, D2, D3, White

OEM VHF Tools

Tools


– universal cutters

  • double tooth radius cutters: 3 x 0.3 mm
  • cylindric double tooth cutters: 3 x 0.5 mm
  • double tooth radius cutters: 2 x 0.6 mm
  • cylindric double tooth cutters: 2 x 1.2 mm


– for wax and plastics (PMMA)

  • single tooth radius cutters: 1 x 1.0 mm
  • double tooth radius cutters: 1 x 1.0 mm


– for zirconium oxide, with diamond coating

  • double tooth radius cutters: 1 x 0.6 mm
  • double tooth radius cutters: 1 x 1.0 mm
  • triple tooth radius cutters: 1 x 2.0 mm
  • cylindric double tooth cutter: 1 x 1.2 mm


– for composites

  • double tooth radius cutters: 1 x 1.0 mm
  • double tooth radius cutters: 1 x 2.0 mm


– for non-precious alloys on CoCr basis and Titanium

  • double tooth radius cutters: 1 x 0.6 mm,
  • double tooth radius cutters: 1 x 1.0 mm
  • four tooth radius cutters: 1 x 2.0 mm
  • double tooth torus cutter: 1 x 1.2 mm


– for glass ceramics

  • radius grinding tool: 2 x 0.6 mm,
  • radius grinding tool: 2 x 1.0 mm,
  • radius grinding tool: 2 x 2.4 mm
  • torus grinding tool for glass ceramics: 2 x 0.6 mm
  • torus grinding tool for glass ceramics: 2 x 1.2 mm

      Customize it!

      Case ID

      Identify your case with the Case ID. You can input the patient’s name, chart number, or even the invoice number.

      Please refrain from using the complete name for HIPPA Compliancy.





      Alien HT Shades

      Alien HT is available in all VITA Classical shades plus white.

      Bleach Shades


      White
      White

      A Shades


      A1 A2 A3 A3.5 A4
      A1 A2 A3 A3.5 A4

      B Shades


      B1 B2 B3 B4
      B1 B2 B3 B4

      C Shades


      C1 C2 C3 C4
      C1 C2 C3 C4

      D Shades



      D2

      D3

      D4





      D2

      D3

      D4







      Share this Product

      Other great brands

      Alien K4 Edition - Dental Milling Machine

      Alien K4 Edition - Dental Milling Machine

      €17.444,95

      QUESTIONS & ANSWERS

      Ask a Question

      • In the fact sheet you show the N4+ as wet milling. You include a dry suction machine as one of the options. Why would dry suction be needed?

        You can still PMMA and Zirconia is block forms.

      • With the N4+, can I use both the blocks from my MCXL mill from Sirona, and discs? Since most of my restorations are single units, is it possible to mill a single restoration from a disc, use a different disc, then replace the original and mill other restorations? Do you also have small zirconia sintering ovens?

        The N4+ only uses Blocks, not Discs.
        Even if you wanted to fit more than one unit a block, this would not be possible, since the CAM software is different.
        We do not sell small zirconia furnaces.
